Thermal Management Strategies for Micro GaN Servo Drives in Robotic Joints
Actionable stack-up and firmware strategies for managing heat dissipation in ultra-compact GaN-based servo PCBA stacks for humanoid robots and cobots.
Integrating servo drives directly into robotic joints forces a massive spike in power density. GaN transistors solve the efficiency problem but create a severe thermal bottleneck at the PCB level due to their tiny footprints.
Executive Summary (TL;DR)
- GaN transistors reduce footprint by 80% but radically increase thermal flux density on the PCB.
- Without an insulated metal substrate (IMS) or thick copper planes, micro-servos will suffer thermal runaway.
- Proper DFM for thermal vias and TIM void ratios under 5% are mandatory for continuous high-torque output.
Here is the exact thermal stack-up and derating logic we deploy for continuous-duty micro actuators at GanServo.
1. GaN vs. Silicon: The Thermal Paradox
GaN devices generate less heat overall due to near-zero reverse recovery charge (Q_rr) and incredibly low on-resistance (R_DS(on)). However, because they are packaged in ultra-small formats (e.g., 3x3mm or 5x6mm QFN), the heat flux density (Watts per square millimeter) is significantly higher than older, bulky D2PAK Silicon MOSFETs.
| Metric | Traditional Si MOSFET (D2PAK) | Micro GaN HEMT (5x6mm QFN) | Impact on Joint Design |
|---|---|---|---|
| Footprint Area | ~150 mm² | ~30 mm² | 80% reduction in power stage size |
| Switching Frequency | 20 - 40 kHz | 100 - 500 kHz | Enables ultra-low inductance motors |
| Max Junction Temp ($T_j$) | 175°C | 150°C | Tighter thermal safety margins required |
| Thermal Flux Density | Low | Very High | Requires immediate PCB/Housing heat sinking |
2. Structural Heat Sinking in Joint Modules
Relying solely on the PCB for heat dissipation is insufficient for continuous high-load operations (like a robotic arm holding a static payload). The mechanical housing of the robotic joint must act as the primary heat sink.
The Heat Path (Junction to Ambient)
To optimize this path, the PCB design must act as a rapid heat spreader.
PCB Layer Stack-up Recommendations
For a 48V, 20A continuous micro servo, a standard 4-layer 1oz board will fail catastrophically. We recommend:
- 6-Layer to 8-Layer Designs: Utilizing inner layers specifically as thermal planes tied to the GaN source/drain.
- Heavy Copper: Outer layers should use 2oz to 3oz copper. Inner layers should be at least 1.5oz.
- Thermal Vias: We mandate a dense array of micro-vias (0.2mm - 0.25mm diameter) directly under the exposed thermal pad of the GaN device. These must be electroplated shut (via-in-pad plated over) to prevent solder wicking during the SMT reflow process, which would otherwise create voids and spike thermal resistance.
TIM (Thermal Interface Material) Selection
The gap between the GaN components and the metal housing must be bridged with a high-performance TIM.
- Thermal Gap Pads: Pads with a thermal conductivity of > 5 W/m·K are standard. However, excessive compression can stress the PCBA and crack ceramic capacitors. Dimensional tolerance control of the CNC housing is vital.
- Thermal Putty/Gel: For highly integrated, irregular board topographies, dispensable thermal gels (e.g., 6-8 W/m·K) offer excellent gap-filling without inducing mechanical stress on delicate components like the absolute encoder chips mounted nearby.
Case Study: 30mNm Continuous Stall Test (GaN vs Si)
Lab Data: In a 30mNm continuous stall test without external active cooling, a standard silicon MOSFET PCBA lacking thermal vias saw $T_j$ spike to 165°C within 45 seconds, resulting in catastrophic thermal runaway.
Under the identical 30mNm load, the GanServo GaN PCBA with an optimized 6-layer 2oz stack and electroplated thermal vias reached a steady-state $T_j$ of 82°C after 2 hours.
3. Firmware-Level Thermal Protection
Hardware thermal management must be backed up by intelligent firmware controls to prevent catastrophic failure during unexpected stall conditions.
Dynamic Current Foldback
Instead of a hard shutoff when a temperature threshold is reached—which would cause a humanoid robot to collapse—implement a dynamic current foldback algorithm.
- NTC Thermistor Placement: Place 0402 NTC thermistors physically adjacent to the GaN power stage and the motor phase terminals.
- Derating Curve: If the PCBA temperature exceeds 85°C, the firmware should gracefully reduce the $I_q$ (torque producing current) limit. This allows the joint to maintain position at reduced torque rather than completely dropping the payload.
Buyer's Validation Checklist for OEM Selection
When evaluating a manufacturing partner for your compact GaN servo project, ensure they can provide hard data on the following:
Partnering with an OEM that understands the intersection of GaN switching and mechanical thermal design is the only reliable way to move a high-torque joint from lab prototype to mass production without burning up.
Author
Categories
More Posts

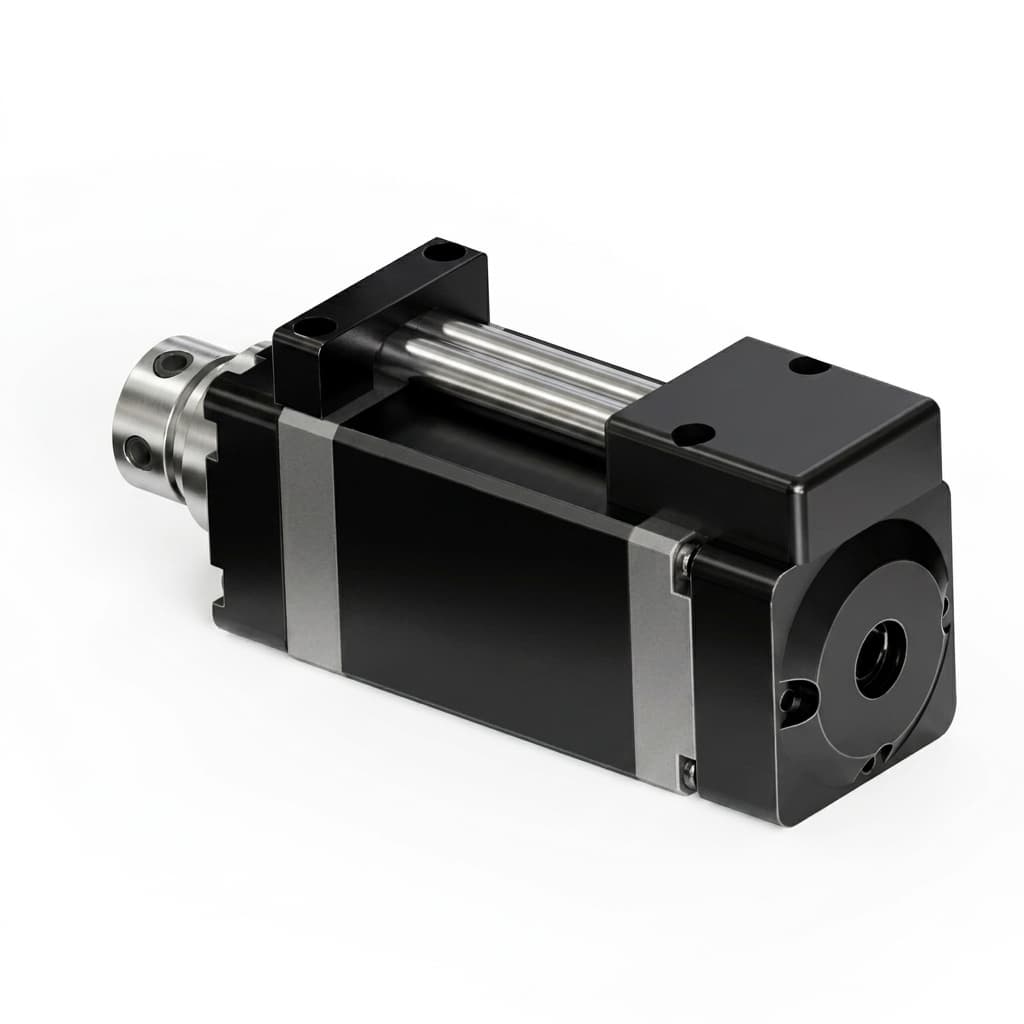

BLDC vs. Coreless Motors in Micro Actuators: An Integration Guide
A technical breakdown of when to pair your embedded GaN servo drive with a traditional BLDC motor versus a coreless DC motor for compact robotics.

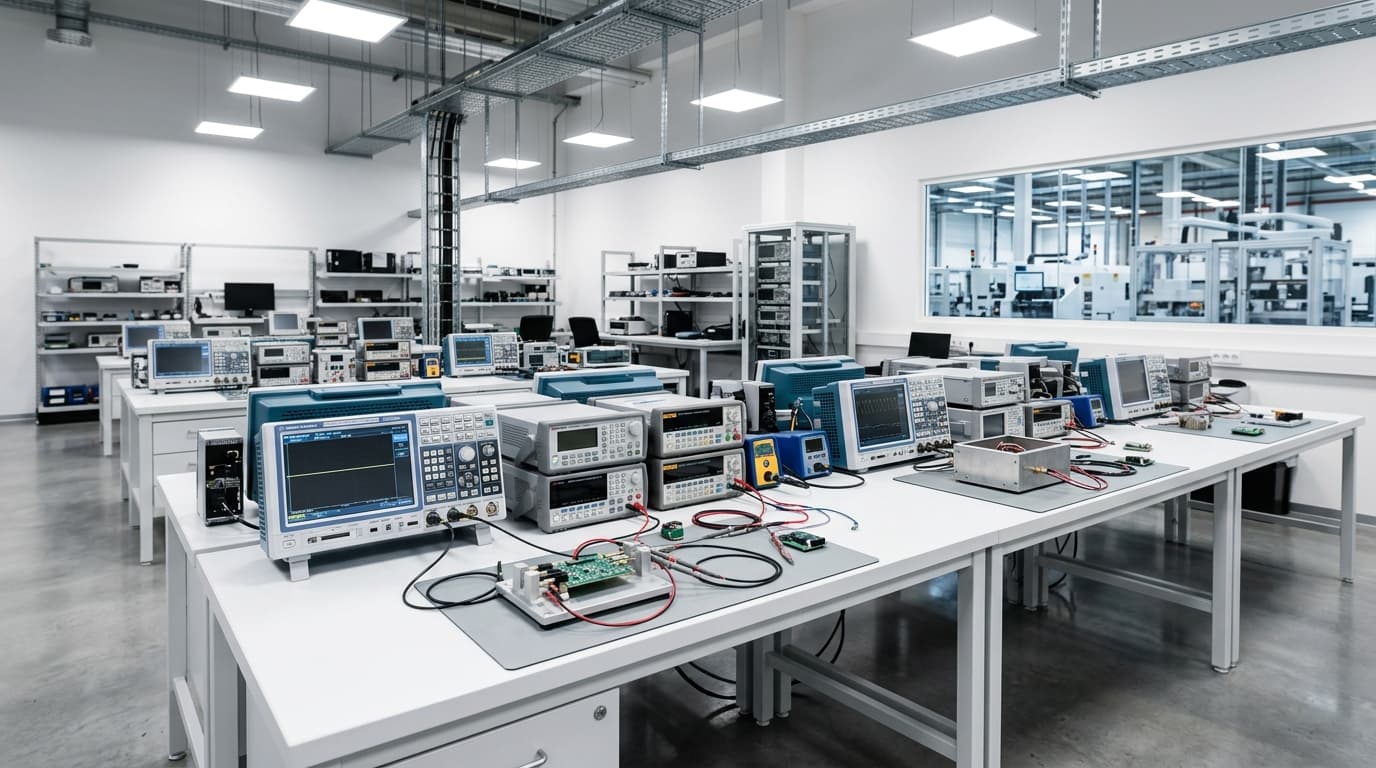

Supplier Validation Checklist: Qualifying an OEM for Robotic Joint Electronics
