SMT Process Control
Stencil, reflow, panelization, placement, and inspection planning are reviewed before pilot release.
Quality evidence for compact GaN servo PCBA programs: SMT process control, clean handling, inspection records, thermal validation, functional test fixtures, and traceable release packages.
Certification, cleanroom, ESD, and audit documents should be confirmed in the RFQ package before buyer-side supplier files use them as formal claims.
Stencil, reflow, panelization, placement, and inspection planning are reviewed before pilot release.
AOI, microscope review points, firmware flash, current checks, bus checks, and pass/fail records are scoped per program.
Thermal images are tied to voltage, current, duty cycle, enclosure, cooling, and firmware assumptions.
Board envelope, connector keep-outs, heat paths, mounting datum, and STEP-package constraints are reviewed early.
The strongest supplier page is not a list of unsupported badges. It is a clear trail from files to SMT process control, inspection, validation, and release records.
| Gate | Evidence to Scope | Buyer Value |
|---|---|---|
| Incoming Engineering Baseline | Gerber, BOM, placement, schematic, drawing, no-substitution list | Prevents quoting around files that are not ready for repeatable assembly. |
| SMT Readiness | Stencil plan, panelization notes, reflow profile, SPI/AOI scope | Turns dense GaN power-stage assembly into a controlled manufacturing flow. |
| In-Process Inspection | AOI results, microscope review points, polarity and solder checks | Catches critical solder, placement, and fine-pitch defects before functional test. |
| Electrical and Firmware Test | Firmware flash, current-limit check, encoder/bus check, fixture logs | Confirms each board can be validated as a servo-control product, not only as an assembled PCBA. |
| Thermal and Reliability Sampling | Thermal image data, duty-cycle notes, vibration or cycling scope when required | Connects performance claims to real operating conditions and buyer-side acceptance criteria. |
| Outgoing Release Package | Serial labels, inspection records, batch notes, packaging and export checklist | Improves traceability for pilot builds, repeat orders, and supplier qualification files. |

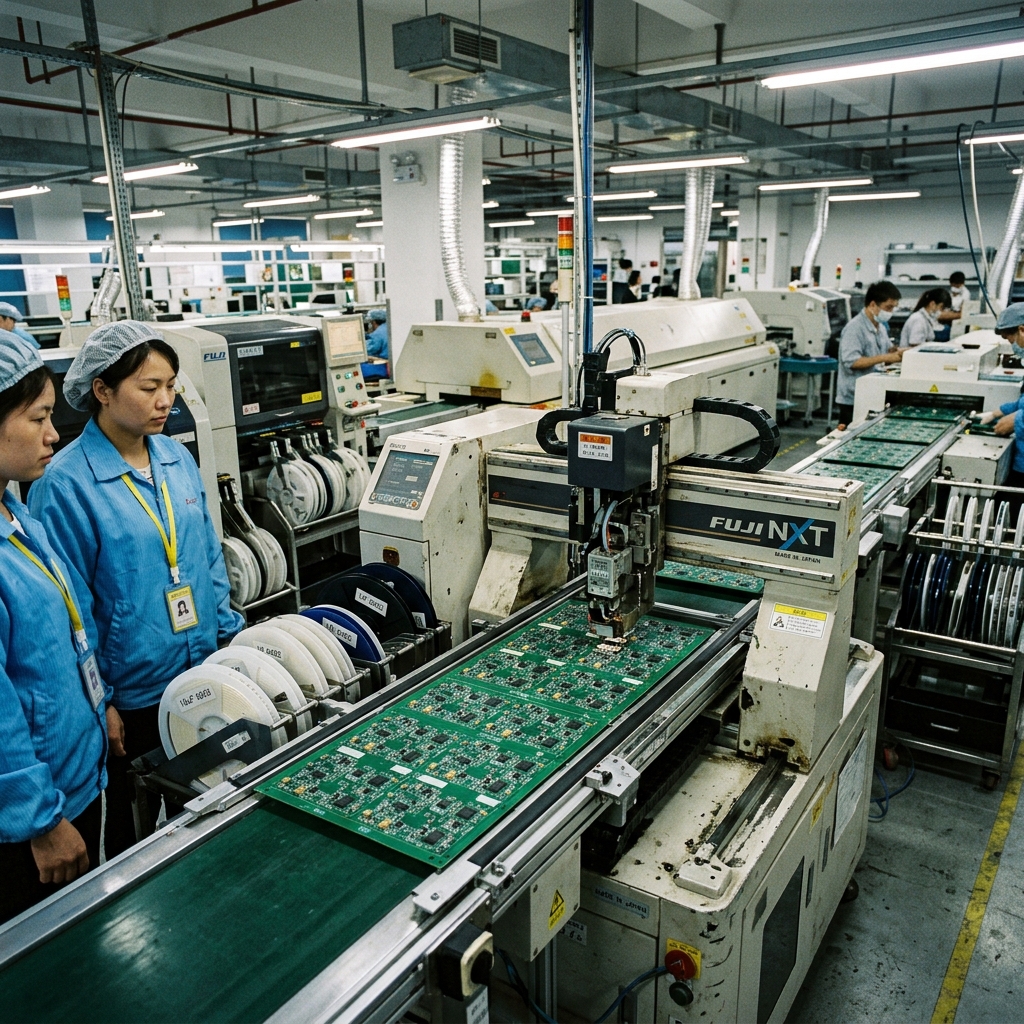

Precision mounting for dense GaN modules.
Ensuring zero defects on high-current traces.

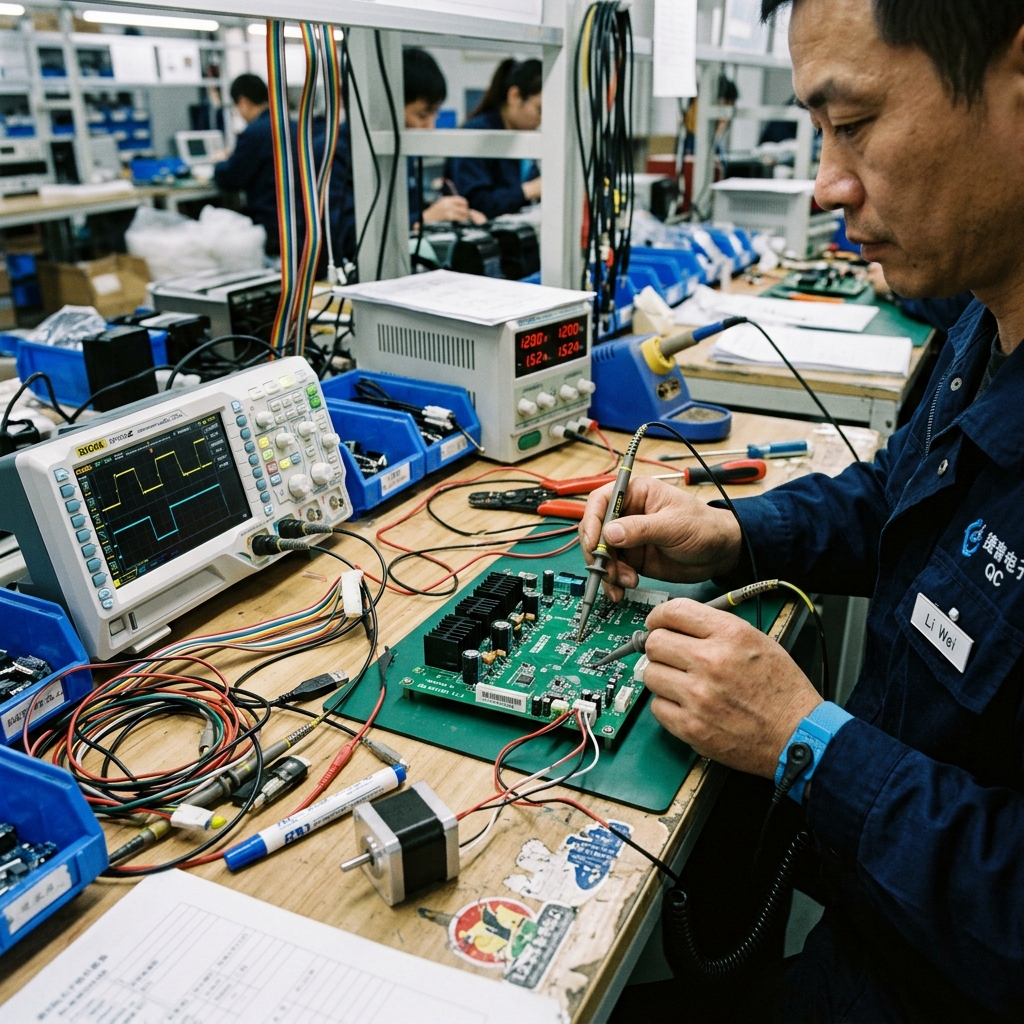

Manual verification of critical joints.

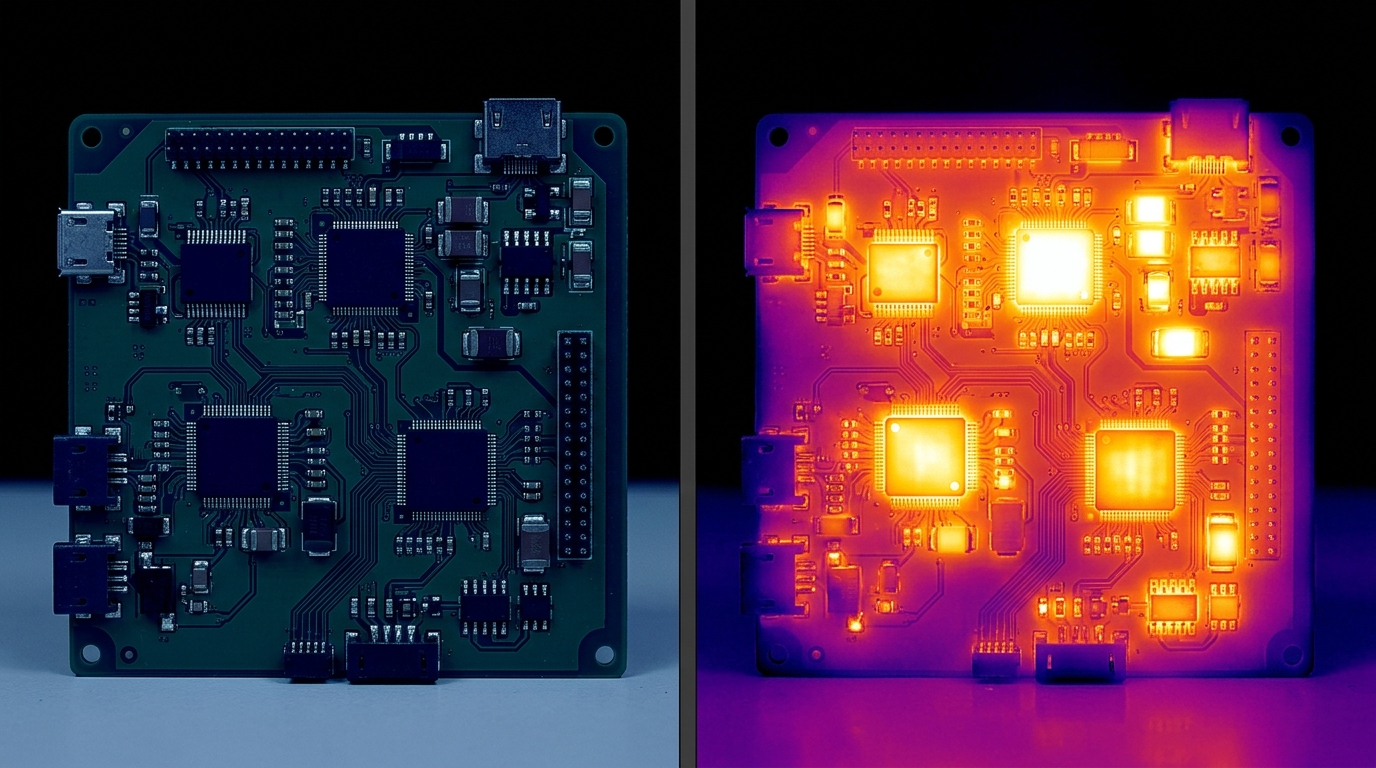

Validating heat dissipation under peak loads.

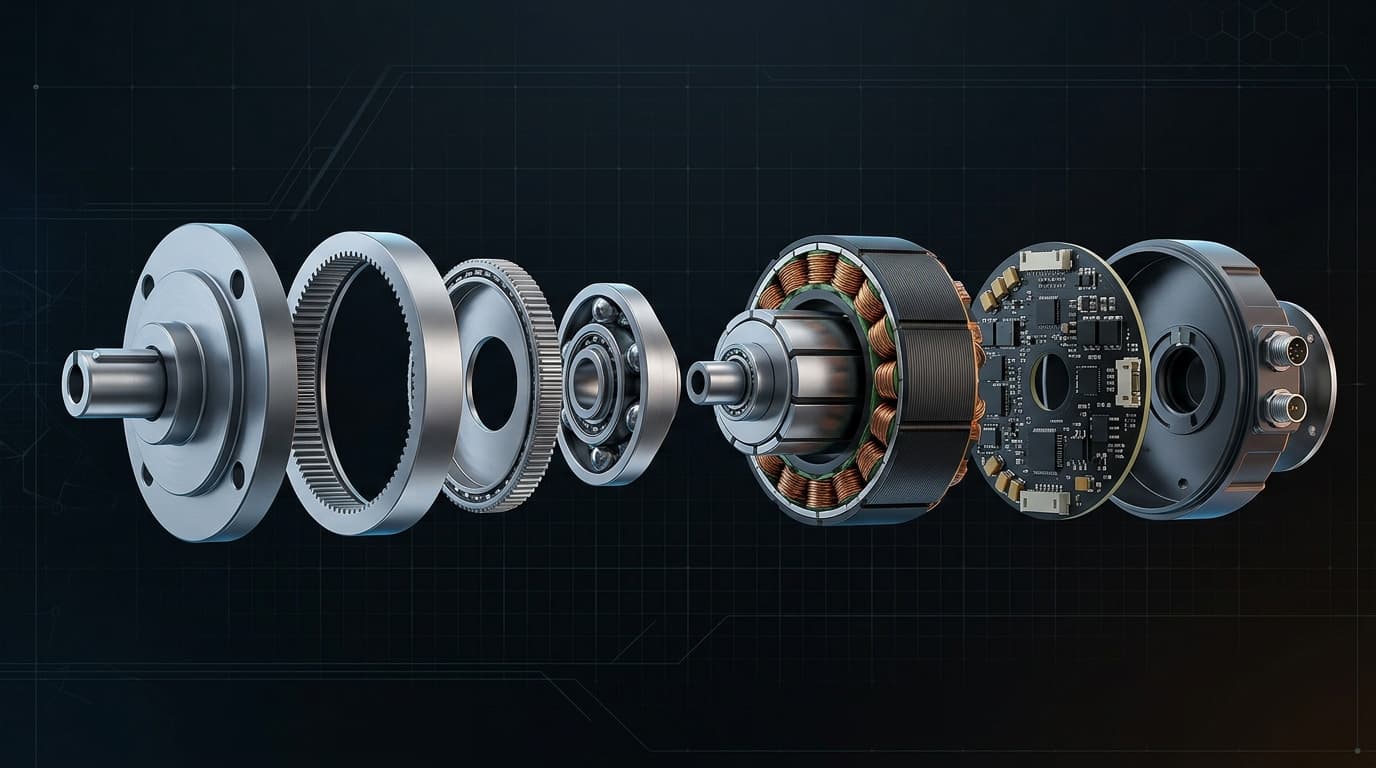

3D envelope verification to ensure zero fitment errors in your enclosure.

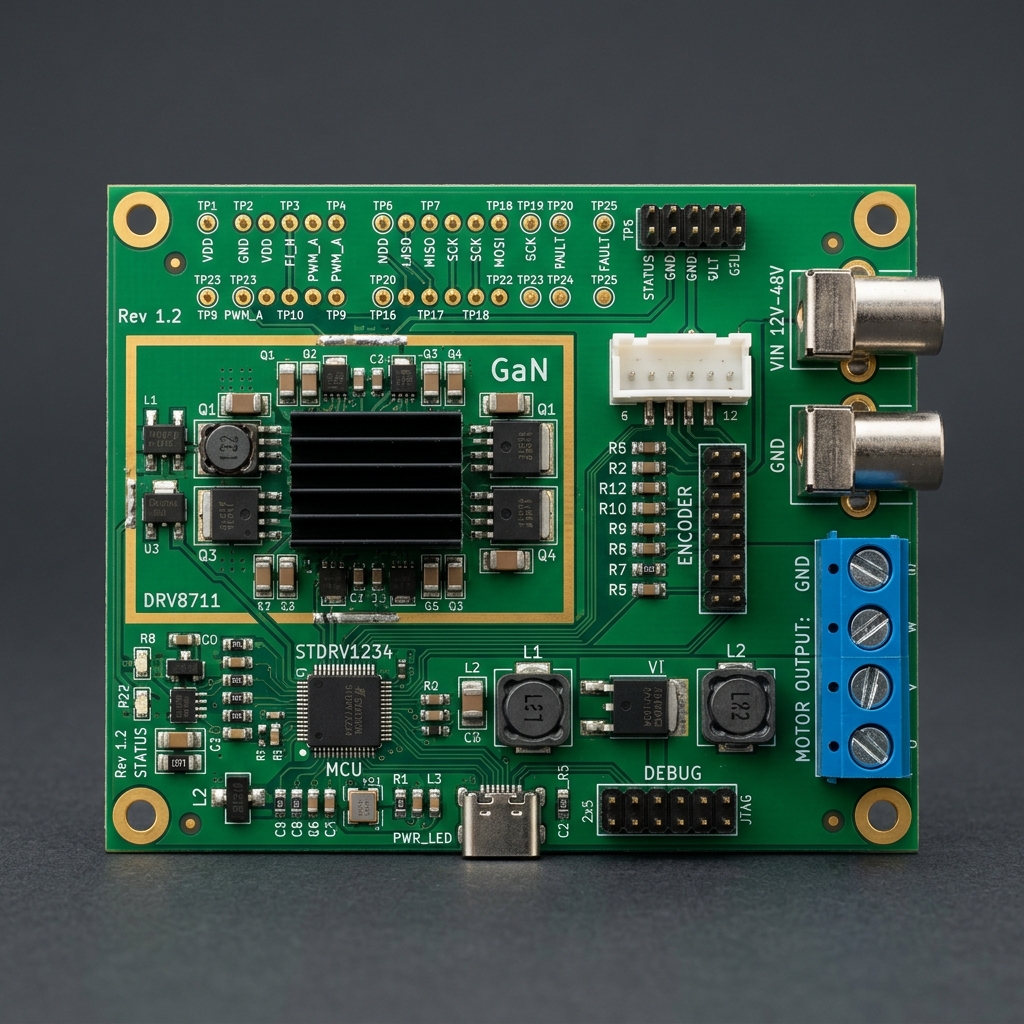

Custom end-of-line testing for calibration and pass/fail traceability.
No. Clean handling, ESD, quality, and facility documents are confirmed per project so buyers do not rely on unverified marketing claims.
Yes. Those records can be scoped for prototype, pilot, and mass-production programs when the buyer defines the acceptance package early.
Thermal image sampling is commonly discussed for compact GaN servo boards. Vibration, cycling, and extended reliability tests should be specified in the RFQ scope.
